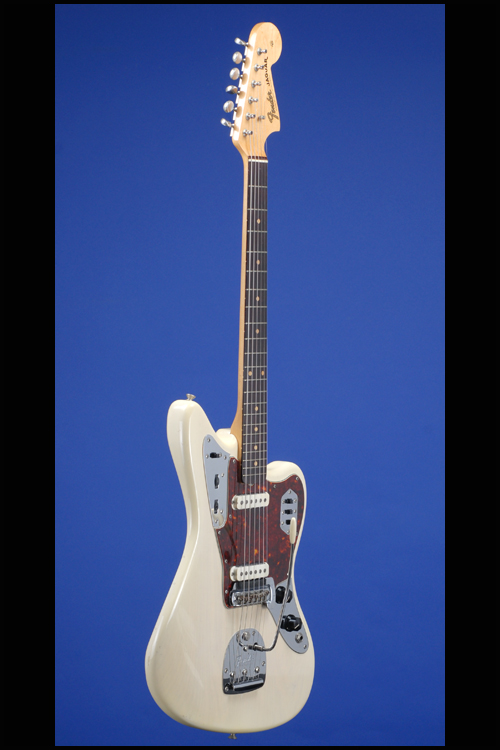

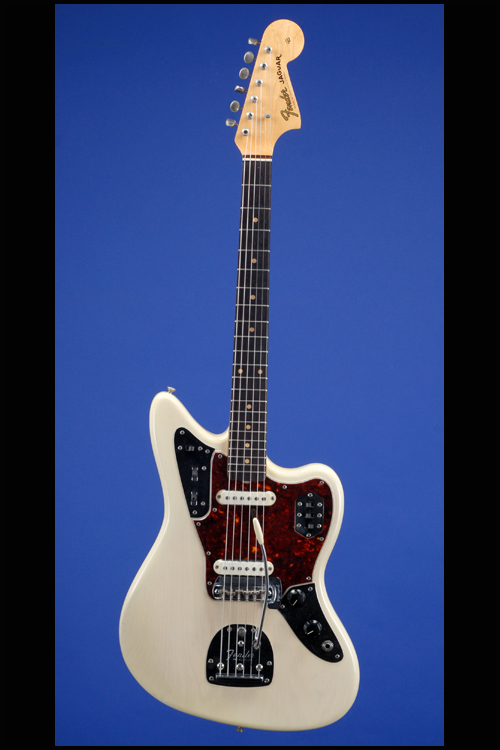

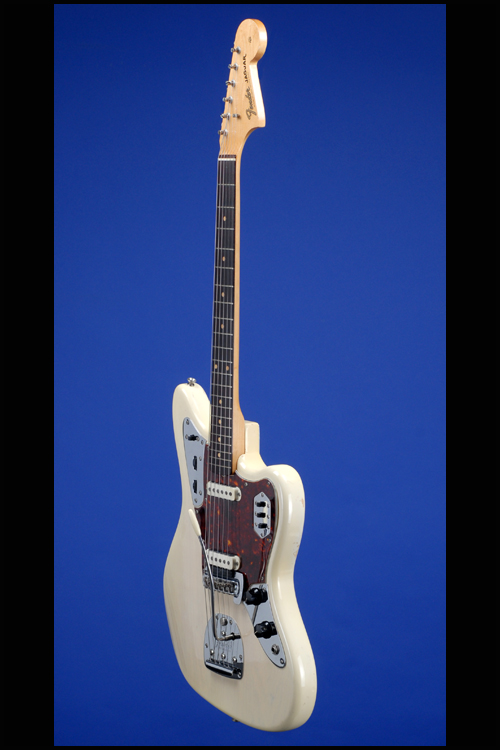

A Near Mint "L Series" Ash Body, See-Thru Blond Jaguar.

1963 Fender Jaguar.

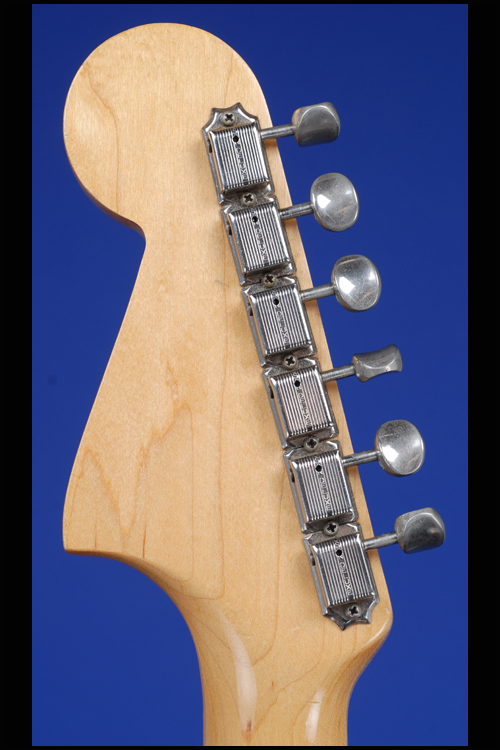

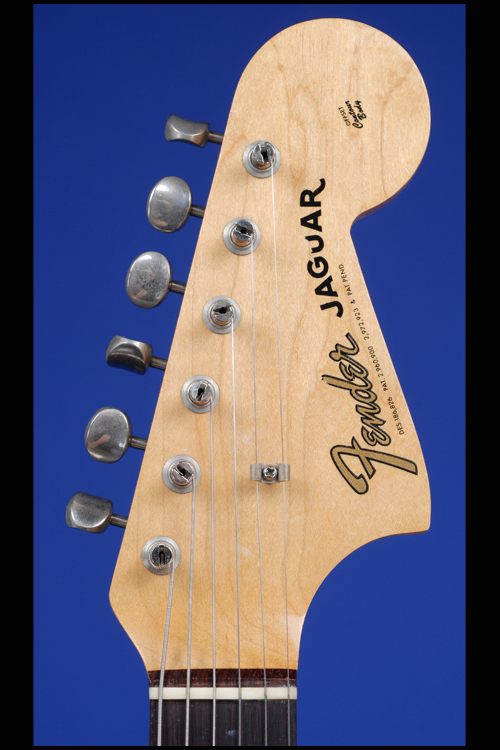

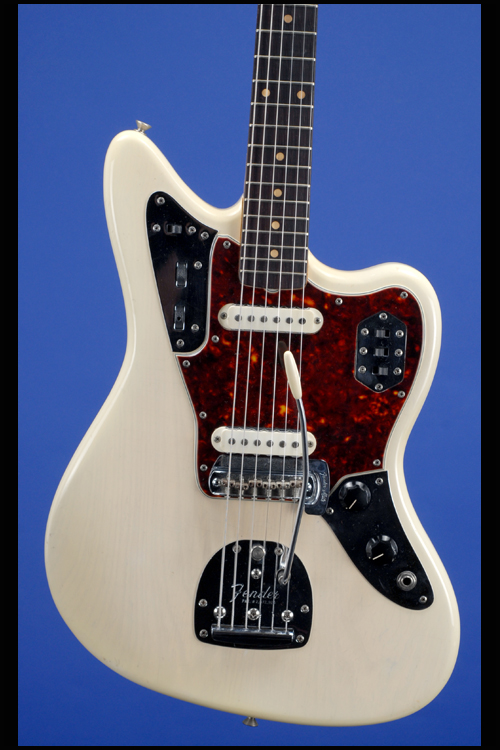

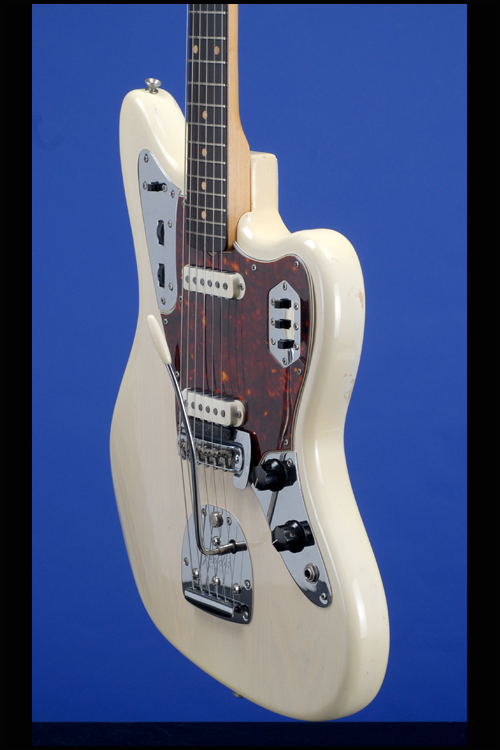

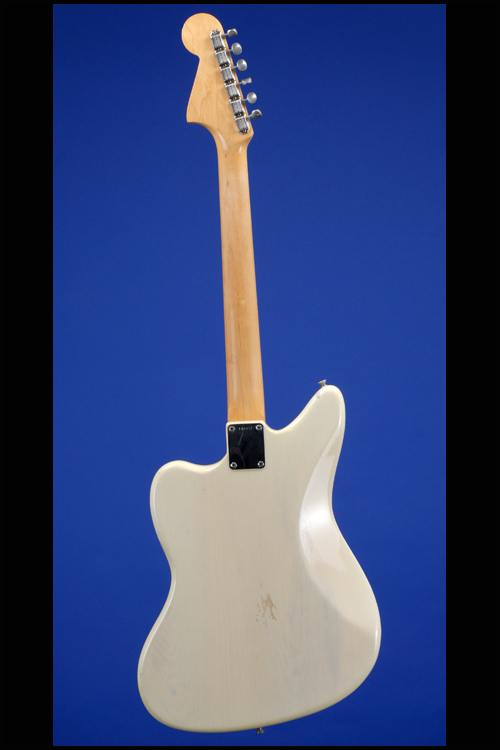

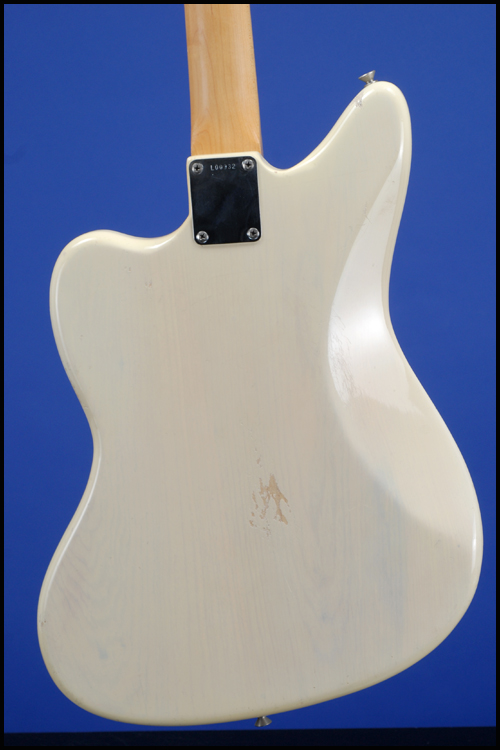

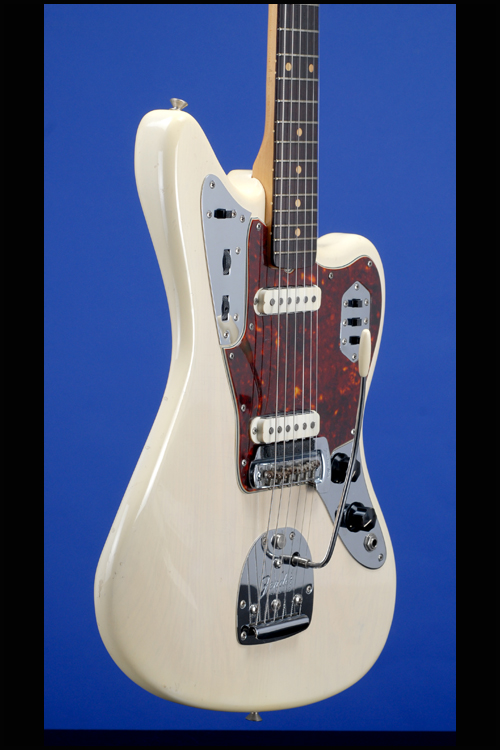

This 13 3/4-inch-wide Jaguar weighs just 7.90 lbs. and has a "B" nut width of just under 1 5/8 inches and a scale length of 24 inches. One-piece ash body, one-piece maple neck with a very fast medium-to-thin profile. Curved veneer Brazilian rosewood fretboard with 22 original thin frets and inlaid clay dot position markers. Headstock with "Fender" logo in gold with black trim, "Jaguar" in black in bold letters beside it, and three patent numbers in black below. "Offset Contour Body" decal at the ball end of the headstock. Single "butterfly" string tree with nylon spacer. The neck is dated "1 JUN 63B." Four-bolt neck plate with serial number "L00932" between the top two screws. Individual single-line Kluson Deluxe tuners with oval metal buttons (stamped "D-169400/PATENT NO." on the inside). Two white oblong Strat-like pickups with notched metal side plates and outputs of 7.53k and 7.87k. The potentiometers are stamped "304 6328" and "304 6336" (Stackpole July and September 1963). Four-layer (tortoiseshell/white/black/white) plastic pickguard with ten screws. Two controls (one volume, one tone) and jack socket on lower metal plate adjoining pickguard on the treble side, circuit selector (rhythm/lead) slide switch and two roller controls (one volume, one tone) on upper metal plate adjoining pickguard on the bass side, and three pickup selector slide switches on metal plate inset into the pickguard on the treble side. Black plastic Jaguar knobs. Jazzmaster-type floating tremolo and bridge with adjustable mute. The Inside of the tremolo cavity is dated in blue pencil "2/63". This wonderful totally original see-through blond, ash bodied Jaguar is in near mint (9.25) condition, with only some minuscule belt buckle scarring on the back and a few tiny marks on the edges. Complete with the original trermolo arm, bridge cover, Fender eight-page hang-tag with matching serial number, original black leather strap, original cord and even an original set of Fender 'Mastersound' flatwound strings in their original pouch. Housed in the original Fender cream Tolex hardshell case with black leather ends and dark orange plush lining (9.00).

"Not content with the relatively expensive Jazzmaster, Fender introduced a new top-of-the-line model in 1962: the Jaguar. [The pricelist offered a basic Sunburst Jaguar at $379.50; a similar Jazzmaster was $349.50]. Another offset-waist multi-control instrument, the Jag seemed an attractive proposition, but still failed to dent the supremacy of Fender's dynamic duo, the Tele and the Strat...The Jag used a similar offset-waist body shape to the earlier Jazzmaster, and also shared that guitar's separate bridge and vibrato unit, although the Jaguar had the addition of a spring-loaded string mute at the bridge. Fender rather optimistically believed that players would prefer a mechanical string mute to the natural edge-of-the-hand method. They did not. There were some notable differences between the Jaguar and Jazzmaster. Visually, the Jag had distinctive chromed control panels, and was the first Fender with 22 frets. Its 24" (610mm) scale-length ('faster, more comfortable') was shorter than the Fender standard of 25" (635mm) and closer to that of Gibson. It gave the Jag a different playing feel compared to other Fenders. The Jaguar had better pickups than the Jazzmaster. They looked much like Strat units but had metal shielding added at the base and sides, no doubt as a response to the criticisms of the Jazzmaster's tendency to noisiness. The Jag's electrics were yet more complex than the Jazzmaster's, using the same rhythm circuit but adding a trio of lead-circuit switches...The Jaguar was offered from the start in four different neck widths, one a size narrower and two wider than normal (coded A, B, C or D, from narrowest to widest, with 'normal' B the most common)" (Tony Bacon, 50 Years of Fender, p. 36).
