EVIL*ROBOT-C30 Amplifiers

Tone Americana EVIL*ROBOT-C30

Color: Black, Rating: 10.00, $750.00 (ID# 01428)
Call to Inquire: (818) 222-4113 | Watch Related Video »

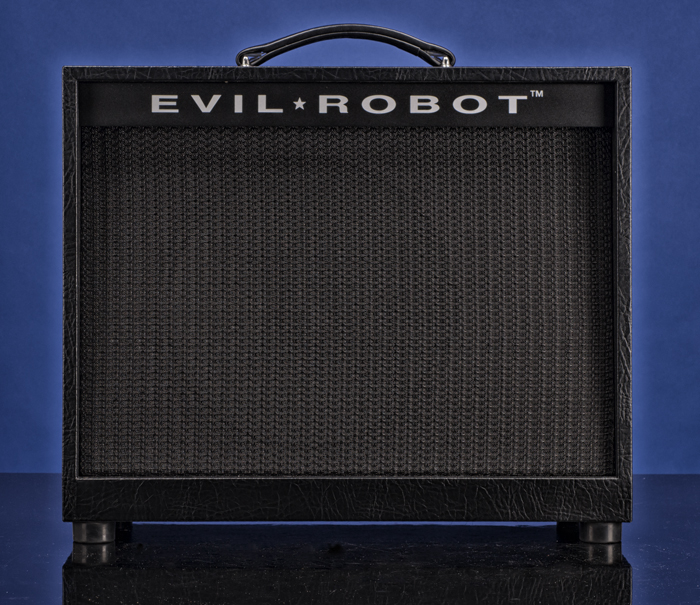

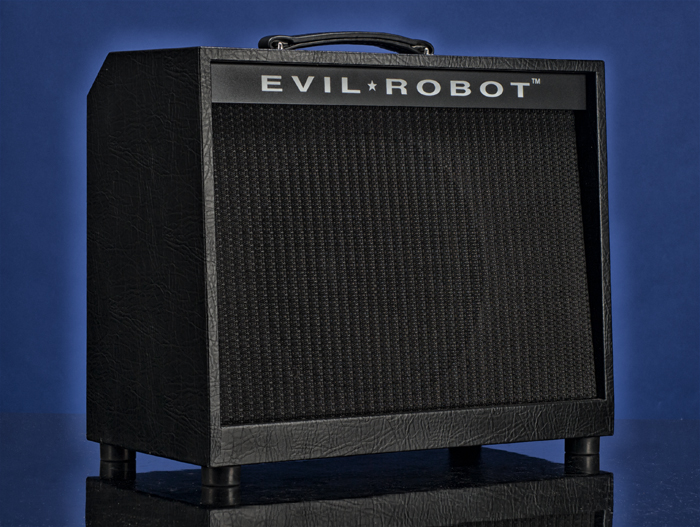

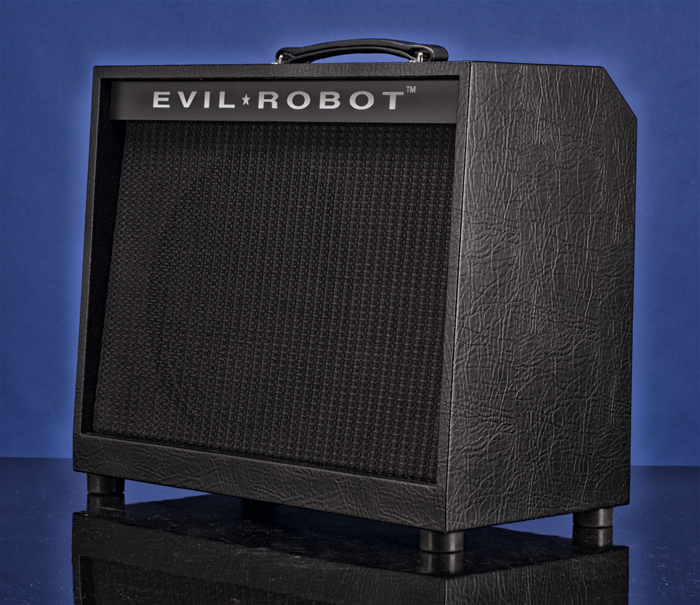

This is the EVIL*ROBOT-C30.





$750 + shipping.





To order the EVIL*ROBOT-C30, please email info@frettedamericana.com



or call (001) 818.222.4113





EVIL*ROBOT-C30.



Reminiscent of the original Tonemaster™ Troubador 214 amp that came onto the market in 1959 and immediately set the standard for rock n’ roll, blues and R&B tone, with incredibly smooth harmonics and sweet Class A tone has once again been resurrected from the dead.  The amp was carefully reconstructed from the ground up paying attention to the electronics that have made this amp one of the most sought after tone machines for many artists over the years.

Since 2010, Phil X who is the host of the Fretted Americana hit classic guitar show on YouTube™ has demonstrated the original EVIL*ROBOT amp with classic guitars dating as far back as the 30s to the present with hundreds of videos playing rock classics.



Now Fretted Americana has made this great amp available in a more affordable version. Still the great sound, but priced for the wider market. The Evil Robot™ can be used in the studio, live with full bands and is perfect for small venues.





**********ALL SALES ARE FINAL**********

Specifications:

Power:                                18W/30W Class A, cathode biased


Power Switches                    Power On, 18W, Standby and 30W Operation


Channels (2):                      Loudness A/B high and low


LEDs:                                  Loudness A and B


Controls:                             Loudness A/B Volume, Tone A/B (pulling Loudness A switches between

                                          channels A and B)


Master Volume                     Controls overall volume level, maintains tone and distortion down

                                          to whisper levels


Vibrato:                               Intensity and Speed


Power Tubes                        (4) 6V6 (fixed bias)


Preamp Tubes:                    (3) 12AX7, (1) 12AU7, (1) 6AV6


Speaker Output:                  8/16 ohm selector, output jack wired to speaker,
                                          disengages external speaker when inserted


Remote Speaker Output:      1/4” metal jack, wired in parallel with main speaker


Effects Loop                        Tube buffered, Send and Return (true bi-pass when not inserted)


Tone Selector:                     Normal, Mellow, and Bright


Transformers:                      Ear Tuned, Hand Wound


Speaker:                             Custom speaker (8 ohm) 12”


Chassis and Name Plate:      16 gauge steel, painted, screened and baked


Assembly:                           Hand made, circuit board (2 oz copper traces, thick circuit board),

                                          quality components


Front Jacks:                        (2) High and Low  ¼” metal jacks
Knobs:                                Black chicken head


Cabinet:                              Birch Wood


Tolex:                                 Black, animal glue, finished corners


Grill Cloth:                          Black Mesh


Handle:                              Heavy duty black vintage style


Accessories:                        Two button foot switch, controls channels and vibrato


Weight:                              28 lbs


Dimensions:                        20”L x 9.5”W x 15”H


Cooling:                              Fan



Cover:                                Black (included)


Power:                                100VAC, 120VAC, and 240VAC – 50/60Hz – UL and CE transformers,

                                          USA and International


(Transformer line voltage is configured at the factory. Specify transformer line voltage at the time of order).





**********ALL SALES ARE FINAL**********









EVR C30

just wanted to thank you guys so much. My Evil Robot arrived on Friday (in perfect condition) and i took it to jam with my band on the weekend, and it is absolutely awesome. Its the best sounding amp ive ever heard and its perfect volume with only one tube in it. Really appreciate everything you have all done

EVIL ROBOT-c30

Hey guys,Just wanted to let you know that I received my evil robot C30 today and it sounds amazing. One again, thank you for all your help.Take it easy and all the best to you all,Peter
